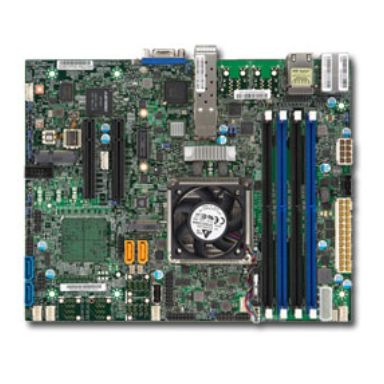

Supermicro Motherboard X10SDV-4C+-TP4F (Retail)
In Stock
|
$721.19
$865.43 (Inc. VAT)
Technical details
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
Flex-ATX
Component for
Server
Sustainability certificates
RoHS
Performance
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2
Motherboard form factor
Flex-ATX
Component for
Server
Processor
Processor manufacturer
Intel
Processor socket
BGA 1667
Supported QPI
8 GT/s
Processor number of cores supported
4
Memory
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
160018662133 MHz
Maximum internal memory
128 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
TPM connector
Yes
Number of SATA III connectors
4
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
5
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
COM ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Features
Motherboard form factor
Flex-ATX
Component for
Server
Expansion slots
PCI Express x1 (Gen 2.x) slots
1
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
2
BIOS
BIOS type
AMI
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Weight & dimensions
Width
9" (228.6 mm)
Depth
7.25" (184.2 mm)
Supermicro Motherboard X10SDV-4C+-TP4F (Retail)
| Length | 7.3 cm |
| Width | 9 cm |
| Weight | 1.000000 kgs |
