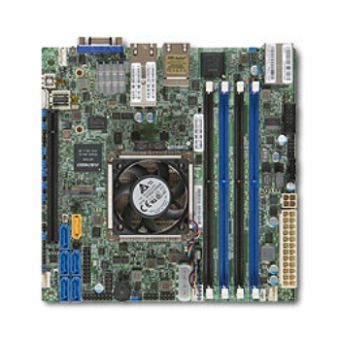

Supermicro Motherboard X10SDV-TLN4F (Retail)

Supermicro Motherboard X10SDV-TLN4F (Retail)

Suitable for applications where space is limited but enterprise-class connectivity, low power, high memory capacity, and robust I/O are required, Supermicro Motherboard X10SDV-TLN4F UK is a Mini-ITX server board offering an Intel Xeon D-1540 SoC with 8 cores and 16 threads and 128GB DDR4 ECC RDIMM memory.

Key Specs of Supermicro X10SDV-TLN4F Server Motherboard UK:

• Intel® Xeon® processor D-1541, Single socket FCBGA 1667, 8-Core, 45W

• System on Chip

• Up to 128GB ECC RDIMM DDR4 2400MHz or 64GB ECC/non-ECC UDIMM in 4 sockets

• 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280

• 2 10GbE and 2 GbE LAN ports with 1 IPMI dedicated LAN

• 6 SATA3 (6Gbps) ports via SoC

• 2 USB 3.0 ports (rear), 4 USB 2.0 ports (via headers)

• 1 SuperDOM, 1 COM, TPM header, GPIO, and SMBus headers

• 12V DC Input and ATX Power Source

Here is a detailed description of Supermicro X10SDV-TLN4F UK.

Processor & SoC:

Supermicro Mini-ITX Xeon D-1541 UK is provided with Intel® Xeon® processor D-1541 featuring a Single socket FCBGA 1667 and 8-Core. The SoC is also a major highlight, incorporating a memory controller, PCIe lanes, onboard networking, and many other functions, allowing users to enjoy a compact, broad design.

Supermicro X10SDV-TLN4F Memory Support:

It is provided with memory capacity with up to up to 128GB Registered ECC RDIMM. Similarly, it also offers DDR4-2400MHz up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots. Supermicro Mini-ITX Xeon D-1541 UK comes with 2400/2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM memory type and corrects single-bit errors and detects double-bit errors (using ECC memory), making it a suitable server motherboard in the UK.

Storage & Expansion:

Supermicro D-1541 Mini-ITX features multiple expansion slots, including 1 PCI-E 3.0 x16 PCE and 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280 M.2 slots. One M.2 slot (M Key 2242/2280) can support SATA and PCIe 3.0 x4 NVMe SSDs. Whereas, 6× SATA3 (6 Gbps) ports, which are integrated through SoC, are for typical storage.

Networking & I/O:

Supermicro IPMI KVM-over-LAN UK comes with 2x RJ45 Gigabit Ethernet LAN ports, 2x RJ45 10GBase-T ports, and 1x RJ45 Dedicated IPMI LAN port. Furthermore, MBD-X10SDV-TLN4F-O is provided with 4x USB 2.0 ports (4 headers, Type A) and 2x USB 3.0 ports (2 rear).

In addition, a VGA port for video output, 1 SuperDOM, 1 COM, TPM header, and GPIO and SMBus headers are also there.
