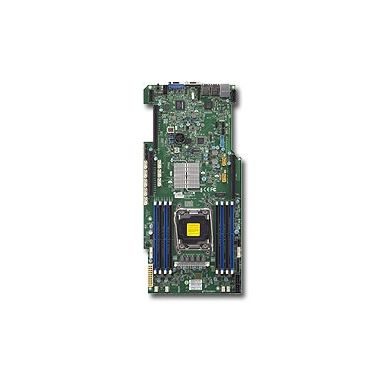

Supermicro Motherboard X10SRG-F (Retail)
In Stock
|
$506.64
$607.97 (Inc. VAT)
Motherboard chipset
Intel® C612
Number of processors supported
1
Number of DIMM slots
8
Component for
Server
Performance
Motherboard chipset
Intel® C612
RAID levels
0- 1- 10
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
145 W
Intel Xeon series
E5-1600- E5-2600
Processor socket
LGA 2011 (Socket R)
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
1333-1600-1866-2133 MHz
Supported RDIMM module capacity
16GB- 32GB- 4GB- 8GB
Maximum RDIMM memory
256 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0- 1- 10
Graphics
On-board graphics card model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
TPM connector
Yes
Number of SATA III connectors
10
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
6
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
3
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Wake-on-LAN ready
Yes
LAN controller
Intel® I350
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel® C612
Component for
Server
Harmonized System (HS) code
84733020
Expansion slots
PCI Express x8 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
2
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
4
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
195.8 mm
Depth
422.7 mm
Supermicro Motherboard X10SRG-F (Retail)
