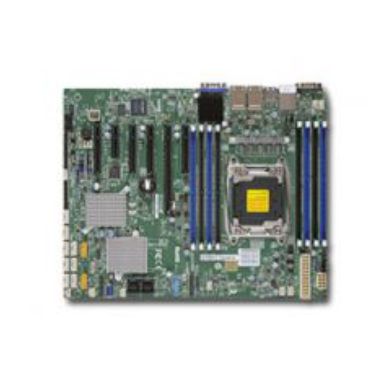

Supermicro Motherboard X10SRH-CLN4F (Retail)
In Stock
|
$676.39
$811.67 (Inc. VAT)
Technical details
Motherboard chipset
Intel C612
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Number of processors supported
1
Number of DIMM slots
8
Motherboard form factor
ATX
Component for
Server
Performance
Motherboard chipset
Intel C612
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Motherboard form factor
ATX
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
145 W
Intel Xeon series
E5-1600E5-2600
Processor socket
LGA 2011 (Socket R)
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
1333160018662133 MHz
Supported RDIMM module capacity
16GB 32GB 4GB 8GB
Maximum internal memory
512 GB
Maximum RDIMM memory
256 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
6
Number of SATA III connectors
10
Integrated SAS ports
8
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1 2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Serial ports quantity
2
Ethernet LAN (RJ-45) ports
5
COM ports quantity
2
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I350-AM4
Ethernet interface type
Fast Ethernet Gigabit Ethernet
Features
Motherboard chipset
Intel C612
Motherboard form factor
ATX
Component for
Server
Expansion slots
PCI Express x4 (Gen 2.x) slots
1
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
3
PCI slots
1
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
4
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Weight & dimensions
Width
12" (305 mm)
Depth
9.61" (244 mm)
Supermicro Motherboard X10SRH-CLN4F (Retail)
| Length | 13 cm |
| Width | 10.25 cm |
| Height | 2.65 cm |
| Weight | 1.000000 kgs |
