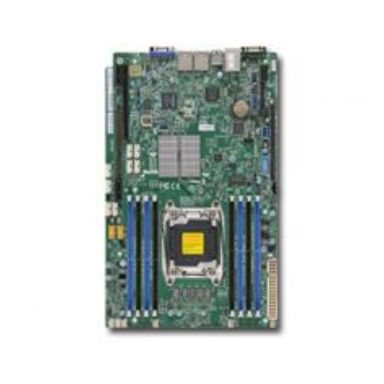

Supermicro Motherboard X10SRW-F (Retail)
In Stock
|
$482.12
$578.54 (Inc. VAT)
Technical details
Motherboard chipset
Intel C612
Serial port headers
1
Number of processors supported
1
Number of DIMM slots
8
Component for
Server
Performance
Motherboard chipset
Intel C612
RAID levels
01510
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
145 W
Intel Xeon series
E5-1600E5-2600
Processor socket
LGA 2011 (Socket R)
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
133318662133 MHz
Supported RDIMM module capacity
16GB 32GB 4GB 8GB
Maximum RDIMM memory
256 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
1
TPM connector
Yes
Serial port headers
1
Number of SATA III connectors
10
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
8
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
3
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Wake-on-LAN ready
Yes
LAN controller
Intel I350-AM2
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel C612
Component for
Server
Expansion slots
PCI Express x8 (Gen 3.x) slots
1
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
4
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
8.15" (207 mm)
Depth
13.1" (331.5 mm)
Other features
PCI Express x8 (Gen 3.x) slots
1
Supported RDIMM module capacity
16GB 32GB 4GB 8GB
Number of processors supported
1
Number of DIMM slots
8
Intel Xeon series
E5-1600E5-2600
Maximum LRDIMM memory
512 GB
Supermicro Motherboard X10SRW-F (Retail)
| Length | 18 cm |
| Width | 14.5 cm |
| Height | 3.35 cm |
| Weight | 1.000000 kgs |
