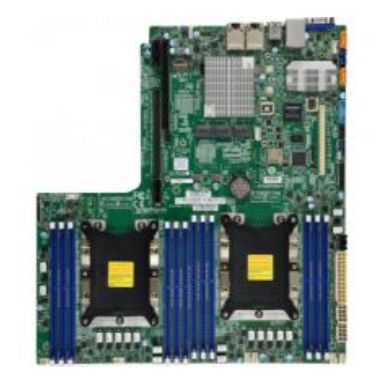

Supermicro Motherboard X11DDW-L (Retail)
In Stock
|
$711.93
$854.32 (Inc. VAT)
Technical details
Motherboard chipset
Intel C621
Number of processors supported
2
Number of DIMM slots
12
Component for
Server
Performance
Motherboard chipset
Intel C621
RAID levels
01510
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
205 W
System bus rate
10.4 GT/s
Processor socket
LGA 3647 (Socket P)
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
213324002666 MHz
Supported RDIMM clock speeds
2666 MHz
Maximum internal memory
1500 GB
Maximum RDIMM memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
Number of SATA III connectors
14
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
Wi-Fi
No
Features
Motherboard chipset
Intel C621
Component for
Server
Expansion slots
PCI Express x16 (Gen 3.x) slots
2
BIOS
BIOS type
UEFI
BIOS memory size
256 Mbit
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
10 - 95%
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
12.3" (312.4 mm)
Depth
13.4" (340.4 mm)
Supermicro Motherboard X11DDW-L (Retail)
| Length | 19.25 cm |
| Width | 15.25 cm |
| Height | 6.5 cm |
| Weight | 1.000000 kgs |
