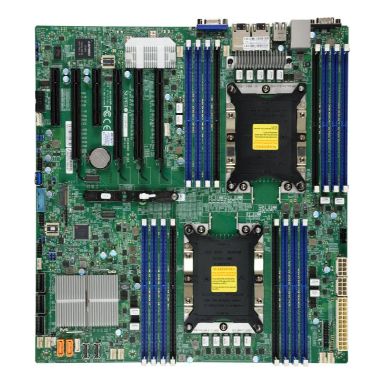

Supermicro Motherboard X11DPI-N (Retail)

Supermicro Motherboard X11DPI-N (Retail)

In Stock In Stock
Brand: Supermicro
SKU: MBD-X11DPI-N-O
Condition: NEW
Delivery: Next Day*
Product Type: Supermicro
$727.57
$873.08 (Inc. VAT)
Technical details
Motherboard chipset
Intel C621
Number of processors supported
2
Number of DIMM slots
16
Motherboard form factor
Extended ATX
Component for
Server
Performance
Motherboard chipset
Intel C621
RAID levels
01510
Motherboard form factor
Extended ATX
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
205 W
System bus rate
10.4 GT/s
Processor number of cores supported
28
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
213324002666 MHz
Supported RDIMM module capacity
64GB
Maximum internal memory
2048 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel C621
Motherboard form factor
Extended ATX
Component for
Server
Expansion slots
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
4
BIOS
BIOS type
UEFI AMI
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
10 - 95%
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
12" (304.8 mm)
Depth
13" (330.2 mm)
Supermicro Motherboard X11DPI-N (Retail)
Length 17 cm
Width 13 cm
Height 3.5 cm
Weight 1.000000 kgs
