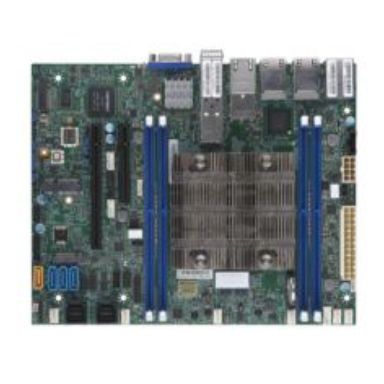

Supermicro X11SDV-4C-TP8F Motherboard
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
System on Chip
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
Flex-ATX
Component for
Server
Sustainability certificates
RoHS
Performance
Motherboard chipset
System on Chip
RAID levels
01510
Motherboard form factor
Flex-ATX
Component for
Server
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Xeon
Intel Xeon series
D-2123IT
Processor number of cores supported
4
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
2133 MHz
Supported RDIMM clock speeds
2133 MHz
Supported RDIMM module capacity
16GB 32GB 64GB 128GB
Maximum internal memory
512 GB
Maximum RDIMM memory
256 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
TPM connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
6
Network
Ethernet LAN
Yes
LAN controller
Intel I350-AM4
Ethernet interface type
10 Gigabit Ethernet
Features
Motherboard chipset
System on Chip
Motherboard form factor
Flex-ATX
Component for
Server
Expansion slots
PCI Express x8 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI
BIOS memory size
128 Mbit
ACPI version
6.1
System Management BIOS (SMBIOS) version
3.1
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
9" (228.6 mm)
Depth
7.25" (184.2 mm)
Other features
PCI Express x8 (Gen 3.x) slots
1
Supported RDIMM clock speeds
2133 MHz
Supported RDIMM module capacity
16GB 32GB 64GB 128GB
Number of processors supported
1
Number of DIMM slots
4
Intel Xeon series
D-2123IT
Supported DIMM module capacities
16GB 32GB 64GB 128MB
Supported LRDIMM module capacity
16GB 32GB 64GB 128GB
Supported LRDIMM clock speeds
2133 MHz
Maximum LRDIMM memory
512 GB
Supermicro X11SDV-4C-TP8F Motherboard
| Length | 15.75 cm |
| Width | 12.5 cm |
| Height | 4.5 cm |
| Weight | 1.000000 kgs |
