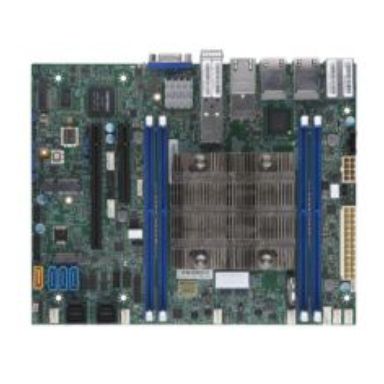

Supermicro MBD-X11SDV-8C-TP8F-O
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
System on Chip
Trusted Platform Module (TPM)
Yes
PC health monitoring
Fan LED Temperature Voltage
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
Flex-ATX
Thermal Design Power (TDP)
80 W
Form factor
Flex ATX
Sustainability certificates
RoHS
Performance
Motherboard chipset
System on Chip
RAID levels
01510
Trusted Platform Module (TPM)
Yes
PC health monitoring
Fan LED Temperature Voltage
Motherboard form factor
Flex-ATX
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
80 W
Compatible processor series
Intel Xeon
Processor number of cores supported
8
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
213324002666 MHz
Supported RDIMM clock speeds
213324002666 MHz
Supported RDIMM module capacity
16GB 32GB 64GB
Maximum internal memory
768 GB
Maximum RDIMM memory
256 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
5
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
6
COM ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
System on Chip
PC health monitoring
Fan LED Temperature Voltage
Motherboard form factor
Flex-ATX
Expansion slots
PCI Express x8 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI
BIOS memory size
128 Mbit
Plug and Play
Yes
Processor special features
Trusted Platform Module (TPM)
Yes
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Software
Bundled software
IPMI2.0 KVM with dedicated LAN Watchdog
Weight & dimensions
Width
9" (228.6 mm)
Depth
7.25" (184.2 mm)
Packaging content
Bundled software
IPMI2.0 KVM with dedicated LAN Watchdog
Other features
Thermal Design Power (TDP)
80 W
PCI Express x8 (Gen 3.x) slots
1
Supported RDIMM clock speeds
213324002666 MHz
Supported RDIMM module capacity
16GB 32GB 64GB
Number of processors supported
1
Number of DIMM slots
4
Supported DIMM module capacities
16GB 32GB 64GB 128MB
Supported LRDIMM module capacity
16GB 32GB 64GB
Supported LRDIMM clock speeds
21332400 MHz
Maximum LRDIMM memory
512 GB
Supermicro MBD-X11SDV-8C-TP8F-O
| Length | 13.3 cm |
| Width | 10.7 cm |
| Height | 3 cm |
| Weight | 1.000000 kgs |
