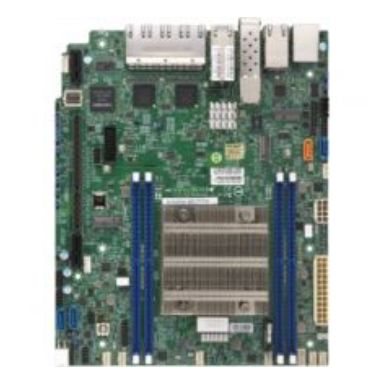

Supermicro Motherboard X11SDW-16C-TP13F (Retail)
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
System on Chip
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
WIO
Component for
Server
Sustainability certificates
RoHS
Performance
Motherboard chipset
System on Chip
RAID levels
01510
Motherboard form factor
WIO
Component for
Server
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Xeon
Processor socket
FCBGA2518
Processor number of cores supported
16
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
213324002666 MHz
Maximum internal memory
512 GB
Maximum RDIMM memory
256 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
4
TPM connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
11
COM ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
LAN controller
Intel I210 Intel I350-AM4
Features
Motherboard chipset
System on Chip
Motherboard form factor
WIO
Component for
Server
BIOS
BIOS type
UEFI
BIOS memory size
256 Mbit
ACPI version
6.1
System Management BIOS (SMBIOS) version
3.1
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
8" (203.2 mm)
Depth
10" (254 mm)
Supermicro Motherboard X11SDW-16C-TP13F (Retail)
| Length | 10 cm |
| Width | 8 cm |
| Weight | 1.000000 kgs |
