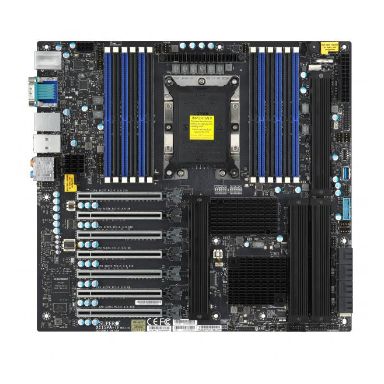

Supermicro Motherboard X11SPA-T (Retail)
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Technical details | |
|---|---|
| Motherboard chipset | Intel C621 |
| Serial port headers | 2 |
| Number of DIMM slots | 12 |
| Motherboard form factor | Extended ATX |
| Component for | Workstation |
| Thermal Design Power (TDP) | 205 W |
| Sustainability certificates | RoHS |
| Performance | |
| Motherboard chipset | Intel C621 |
| RAID levels | 01510 |
| Motherboard form factor | Extended ATX |
| Component for | Workstation |
| Processor | |
| Processor manufacturer | Intel |
| Thermal Design Power (TDP) | 205 W |
| Compatible processor series | Intel Xeon W |
| Processor socket | LGA 3647 (Socket P) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 26662933 MHz |
| Storage controllers | |
| RAID levels | 01510 |
| Internal I/O | |
| TPM connector | Yes |
| Serial port headers | 2 |
| Number of SATA III connectors | 8 |
| Chassis intrusion connector | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Features | |
| Motherboard chipset | Intel C621 |
| Motherboard form factor | Extended ATX |
| Component for | Workstation |
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| BIOS | |
| BIOS type | AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 4 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Weight & dimensions | |
| Width | 12" (304.8 mm) |
| Depth | 13" (330.2 mm) |
Supermicro Motherboard X11SPA-T (Retail)
| Length | 19 cm |
| Width | 15.5 cm |
| Height | 6.75 cm |
| Weight | 1.000000 kgs |
