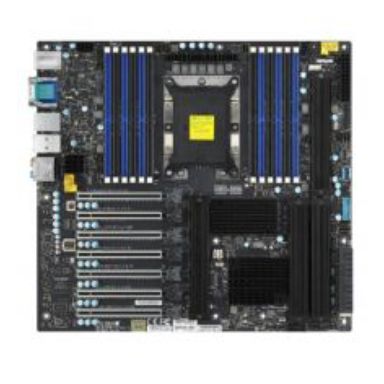

Supermicro Motherboard X11SPA-TF (Retail)
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (E) slots
4
Supported storage drive interfaces
M.2PCI Express 3.0
TPM connector
Yes
Serial port headers
1
IPMI 2.0 slot
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel C621
Serial port headers
1
Number of processors supported
1
Number of DIMM slots
12
Motherboard form factor
Extended ATX
Component for
Workstation
Sustainability certificates
RoHS
Performance
Motherboard chipset family
Intel
Motherboard chipset
Intel C621
RAID levels
0510
Motherboard form factor
Extended ATX
Component for
Workstation
Processor
Processor manufacturer
Intel
Processor cores
28
Compatible processor series
Intel Xeon
Processor socket
LGA 3647 (Socket P)
Processor family
Intel Xeon
Memory
Number of memory slots
12
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
Supported memory clock speeds
26662933 MHz
Storage controllers
Supported storage drive interfaces
M.2PCI Express 3.0
RAID levels
0510
Graphics
Graphics adapter family
ASPEED
Graphics adapter
AST2500
Network
Ethernet LAN
Yes
Wi-Fi
No
Features
Motherboard chipset family
Intel
Motherboard chipset
Intel C621
Motherboard form factor
Extended ATX
Component for
Workstation
Expansion slots
Number of M.2 (E) slots
4
PCI Express x8 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) slots
4
BIOS
BIOS type
AMI
BIOS memory size
256 Mbit
ACPI version
4
System Management BIOS (SMBIOS) version
2.7
Processor special features
Intel Smart Response Technology
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
8 - 90%
Video
Graphics adapter family
ASPEED
Graphics adapter
AST2500
Weight & dimensions
Width
12" (304.8 mm)
Depth
13" (330.2 mm)
Supermicro Motherboard X11SPA-TF (Retail)
| Length | 18.25 cm |
| Width | 14.75 cm |
| Height | 3.25 cm |
| Weight | 1.000000 kgs |
