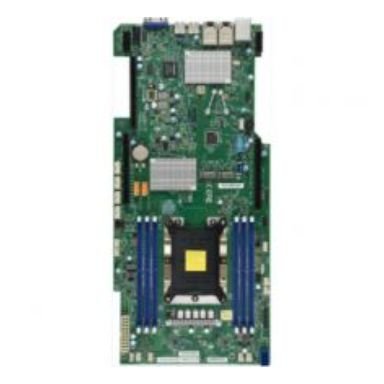

Supermicro Motherboard X11SPG-TF (Retail)
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
Intel C621
Trusted Platform Module (TPM)
Yes
Number of processors supported
1
Number of DIMM slots
6
Motherboard form factor
Proprietary
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C621
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Motherboard form factor
Proprietary
Processor
Processor manufacturer
Intel
Processor thermal power (max)
205 W
Processor socket
LGA 3647 (Socket P)
Processor number of cores supported
28
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Maximum internal memory
768 GB
Maximum RDIMM memory
192 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
TPM connector
Yes
Number of SATA III connectors
6
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
COM ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
10 Gigabit Ethernet
Features
Motherboard chipset
Intel C621
Motherboard form factor
Proprietary
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
3
BIOS
BIOS type
UEFI AMI
ACPI version
6
Processor special features
Trusted Platform Module (TPM)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
7.71" (195.8 mm)
Depth
16.6" (422.7 mm)
Supermicro Motherboard X11SPG-TF (Retail)
| Weight | 1.000000 kgs |
