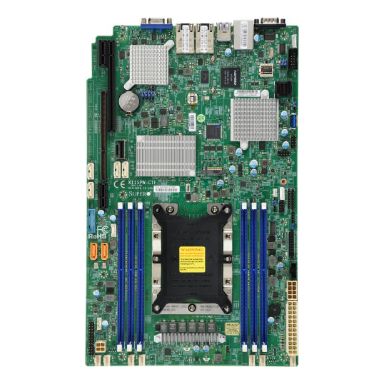

Supermicro Motherboard X11SPW-CTF (Retail)
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
Intel C622
Number of processors supported
2
Number of DIMM slots
6
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C622
RAID levels
01510
Processor
Processor manufacturer
Intel
Processor thermal power (max)
205 W
Processor socket
LGA 3647 (Socket P)
Processor number of cores supported
28
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported RDIMM module capacity
4GB 8GB 16GB 32GB
Maximum internal memory
768 GB
Maximum RDIMM memory
192 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
Number of SATA III connectors
10
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 2.0 ports quantity
7
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
COM ports quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
10 Gigabit Ethernet
Features
Motherboard chipset
Intel C622
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
ACPI version
6
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
8" (203.2 mm)
Depth
13" (330.2 mm)
Supermicro Motherboard X11SPW-CTF (Retail)
| Length | 13 cm |
| Width | 8 cm |
| Weight | 1.000000 kgs |
