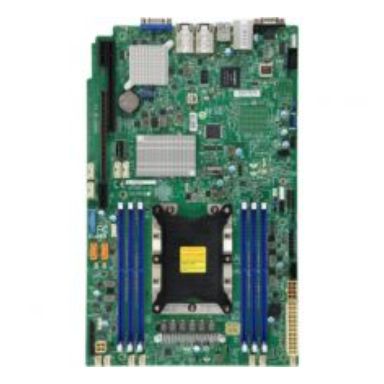

Supermicro Motherboard X11SPW-TF (Bulk)
In Stock
|
$644.94
$773.93 (Inc. VAT)
Technical details
Motherboard chipset
Intel C622
Number of processors supported
1
Number of DIMM slots
6
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C622
RAID levels
01510
Processor
Processor manufacturer
Intel
Processor thermal power (max)
205 W
Processor socket
LGA 3647 (Socket P)
Processor number of cores supported
28
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Maximum internal memory
768 GB
Maximum RDIMM memory
192 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
TPM connector
Yes
Number of SATA III connectors
10
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 2.0 ports quantity
7
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
10 Gigabit Ethernet
Features
Motherboard chipset
Intel C622
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
ACPI version
6
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
8" (203.2 mm)
Depth
13" (330.2 mm)
Supermicro Motherboard X11SPW-TF (Bulk)
| Length | 13 cm |
| Width | 8 cm |
| Weight | 1.000000 kgs |
