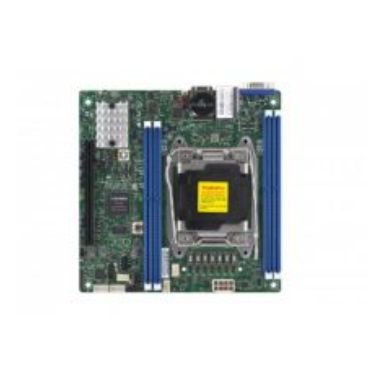

Supermicro Motherboard MBD-X11SRI-IF-O (retail)
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
Intel C422
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
Mini-ITX
Component for
Server
Thermal Design Power (TDP)
165 W
Performance
Motherboard chipset
Intel C422
RAID levels
01510
Motherboard form factor
Mini-ITX
Component for
Server
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
165 W
Compatible processor series
Intel Xeon W
Processor socket
LGA 2066 (Socket R4)
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
213324002600 MHz
Supported RDIMM clock speeds
2933 MHz
Maximum internal memory
512 GB
Maximum RDIMM memory
256 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
TPM connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
LAN controller
Intel I210
Features
Motherboard chipset
Intel C422
Motherboard form factor
Mini-ITX
Component for
Server
Expansion slots
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
ACPI version
6.2
System Management BIOS (SMBIOS) version
3
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
10 - 95%
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
6.75" (171.5 mm)
Depth
6.75" (171.5 mm)
Supermicro Motherboard MBD-X11SRI-IF-O (retail)
| Length | 16 cm |
| Width | 12 cm |
| Height | 4 cm |
| Weight | 1.000000 kgs |
