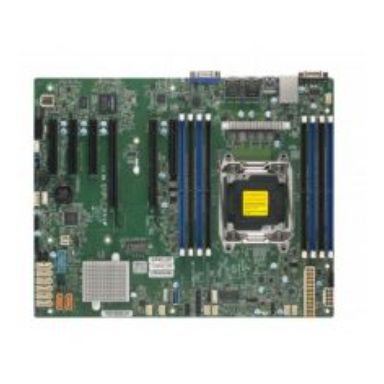

Supermicro Motherboard X11SRL-F (Retail)
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
Intel C422
Number of processors supported
1
Number of DIMM slots
8
Motherboard form factor
ATX
Component for
Server
Thermal Design Power (TDP)
165 W
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C422
RAID levels
01510
Motherboard form factor
ATX
Component for
Server
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
165 W
Compatible processor series
Intel Xeon W
Processor socket
LGA 2066 (Socket R4)
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
213324002666 MHz
Maximum internal memory
1000 GB
Maximum RDIMM memory
512 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
8
Number of COM connectors
1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
COM ports quantity
1
Network
Ethernet LAN
Yes
LAN controller
Intel I210
Features
Motherboard chipset
Intel C422
Motherboard form factor
ATX
Component for
Server
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
4
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
ACPI version
6.2
System Management BIOS (SMBIOS) version
3.1
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
10 - 95%
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
12" (304.8 mm)
Depth
9.6" (243.8 mm)
Supermicro Motherboard X11SRL-F (Retail)
| Weight | 1.000000 kgs |
