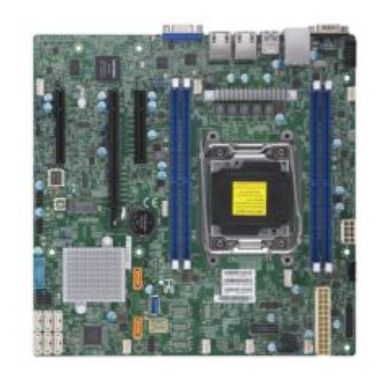

Supermicro Motherboard X11SRM-F-B
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
Intel C422
Trusted Platform Module (TPM)
Yes
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
micro ATX
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C422
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Motherboard form factor
micro ATX
Processor
Processor manufacturer
Intel
Processor thermal power (max)
140 W
Processor socket
LGA 2066 (Socket R4)
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
Supported memory clock speeds
213324002666 MHz
Supported RDIMM clock speeds
213324002666 MHz
Maximum internal memory
256 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
Number of SATA III connectors
8
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 2.0 ports quantity
6
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
COM ports quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel C422
Motherboard form factor
micro ATX
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
ACPI version
6
Processor special features
Trusted Platform Module (TPM)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
10 - 95%
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
9.6" (243.8 mm)
Depth
9.6" (243.8 mm)
Supermicro Motherboard X11SRM-F-B
| Length | 9.6 cm |
| Width | 9.6 cm |
| Weight | 1.000000 kgs |
