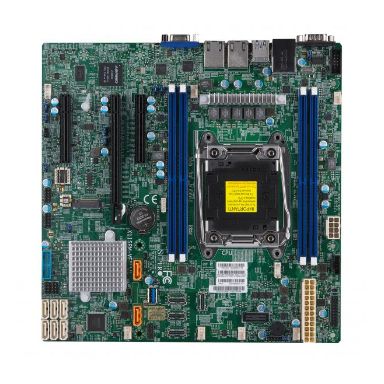

Supermicro Motherboard X11SRM-VF (Retail)
In Stock
|
$454.89
$545.87 (Inc. VAT)
Motherboard chipset
Intel® C422
Trusted Platform Module (TPM)
Yes
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
micro ATX
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel® C422
RAID levels
0- 1- 5- 10
Trusted Platform Module (TPM)
Yes
Motherboard form factor
micro ATX
Processor
Processor manufacturer
Intel
Processor thermal power (max)
140 W
Processor socket
LGA 2066 (Socket R4)
Processor number of cores supported
18
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666 MHz
Supported RDIMM clock speeds
2133-2400-2666 MHz
Maximum internal memory
256 GB
Maximum RDIMM memory
128 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
On-board graphics card model
Aspeed AST2500
Internal I/O
Supported storage drive interfaces
SATA III
Number of SATA III connectors
8
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 2.0 ports quantity
6
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
COM ports quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel® C422
Motherboard form factor
micro ATX
Harmonized System (HS) code
84733020
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
UEFI AMI
ACPI version
6
Processor special features
Trusted Platform Module (TPM)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
10 - 95%
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
243.8 mm
Depth
243.8 mm
