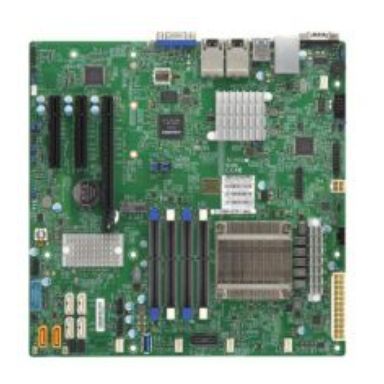

Supermicro Motherboard X11SSH-GF-1585 (Retail)
In Stock
|
$1448.09
$1737.71 (Inc. VAT)
Technical details
Motherboard chipset
Intel C236
Trusted Platform Module (TPM)
Yes
Number of processors supported
2
Number of DIMM slots
4
Motherboard form factor
micro ATX
Thermal Design Power (TDP)
65 W
Audio
Audio output channels
2.0 channels
Performance
Motherboard chipset
Intel C236
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Audio output channels
2.0 channels
Motherboard form factor
micro ATX
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
65 W
Intel Xeon series
E3-1585
Processor socket
BGA 1440
Processor number of cores supported
4
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
Supported memory clock speeds
160018662133 MHz
Maximum internal memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA
RAID levels
01510
RAID support
Yes
Internal I/O
Supported storage drive interfaces
SATA
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 2.0 ports quantity
8
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Features
Motherboard chipset
Intel C236
Audio output channels
2.0 channels
Motherboard form factor
micro ATX
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
4
Processor special features
Trusted Platform Module (TPM)
Yes
Integrated BMC with IPMI
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
9.6" (243.8 mm)
Depth
9.6" (243.8 mm)
Other features
Supermicro Motherboard X11SSH-GF-1585 (Retail)
| Length | 16 cm |
| Width | 12.25 cm |
| Height | 4.5 cm |
| Weight | 1.000000 kgs |
