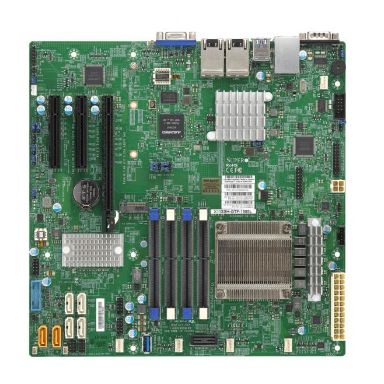

Supermicro Motherboard X11SSH-GF-1585L (Retail)
In Stock
|
$1095.82
$1314.98 (Inc. VAT)
Technical details
Motherboard chipset
Intel C236
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
micro ATX
Component for
Server
Thermal Design Power (TDP)
45 W
Performance
Motherboard chipset
Intel C236
RAID levels
01510
Motherboard form factor
micro ATX
Component for
Server
Processor
Processor manufacturer
Intel
Thermal Design Power (TDP)
45 W
Compatible processor series
Intel Xeon E3 Family
Processor socket
BGA1440
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
160018662133 MHz
Maximum internal memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
6
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
6
Number of COM connectors
1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
COM ports quantity
1
Network
Ethernet LAN
Yes
LAN controller
Intel I350
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel C236
Motherboard form factor
micro ATX
Component for
Server
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
2
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
4
System Management BIOS (SMBIOS) version
2.7.1
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
9.6" (243.8 mm)
Depth
9.6" (243.8 mm)
Supermicro Motherboard X11SSH-GF-1585L (Retail)
| Length | 9.6 cm |
| Width | 9.6 cm |
| Weight | 1.000000 kgs |
