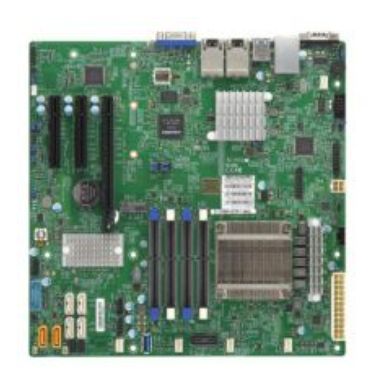

Supermicro Motherboard X11SSH-GTF-1585L (Bulk)
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
Intel C236
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
micro ATX
Performance
Motherboard chipset
Intel C236
RAID levels
01510
Motherboard form factor
micro ATX
Processor
Processor manufacturer
Intel
Processor number of cores supported
4
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
160018662133 MHz
Maximum internal memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
6
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
COM ports quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel X550
Ethernet interface type
10 Gigabit Ethernet
Features
Motherboard chipset
Intel C236
Motherboard form factor
micro ATX
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
2
BIOS
BIOS type
EEPROM
BIOS memory size
128 Mbit
ACPI version
4
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
9.6" (243.8 mm)
Depth
9.6" (243.8 mm)
Supermicro Motherboard X11SSH-GTF-1585L (Bulk)
| Length | 9.6 cm |
| Width | 9.6 cm |
| Weight | 1.000000 kgs |
