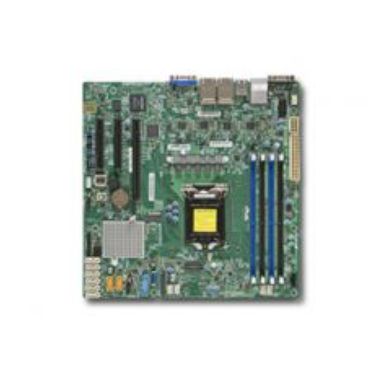

Supermicro Motherboard X11SSH-LN4F (Retail)

Supermicro Motherboard X11SSH-LN4F (Retail)

In Stock In Stock
Brand: Supermicro
SKU: MBD-X11SSH-LN4F-O
Condition: NEW
Delivery: Next Day*
Product Type: Supermicro
Call For Price (0808 189 1246)
Technical details
Motherboard chipset
Intel C236
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
micro ATX
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
ECC supported by processor
Yes
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C236
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Motherboard form factor
micro ATX
Processor
Processor manufacturer
Intel
ECC supported by processor
Yes
Processor thermal power (max)
80 W
Intel Xeon series
E3-1200
Supported QPI
8 GT/s
Processor number of cores supported
4
Lithography
14 nm
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
160018662133 MHz
Maximum internal memory
64 GB
Maximum UDIMM memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
4
TPM connector
Yes
Number of SATA III connectors
8
Number of COM connectors
1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
4
COM ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I210
Features
Motherboard chipset
Intel C236
Motherboard form factor
micro ATX
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
2
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
4
Processor special features
Intel Clear Video Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
8.82" (224 mm)
Depth
8.82" (224 mm)
Supermicro Motherboard X11SSH-LN4F (Retail)
Length 11.2 cm
Width 10.7 cm
Height 2 cm
Weight 1.000000 kgs
