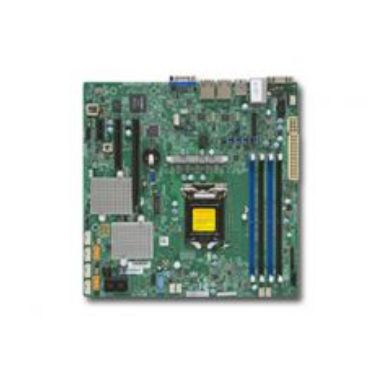

Supermicro Motherboard X11SSL-CF (Retail)
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
Intel C232
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
micro ATX
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C232
RAID levels
01510
Motherboard form factor
micro ATX
Processor
Processor manufacturer
Intel
Intel Xeon series
E3-1200
Processor socket
LGA 1151 (Socket H4)
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Supported memory clock speeds
160018662133 MHz
Maximum internal memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
4
TPM connector
Yes
Number of SATA III connectors
6
Number of COM connectors
1
Chassis intrusion connector
Yes
Integrated SAS ports
8
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
COM ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Fast Ethernet Gigabit Ethernet
Features
Motherboard chipset
Intel C232
Motherboard form factor
micro ATX
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
1
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
4
Weight & dimensions
Width
9.61" (244 mm)
Depth
9.61" (244 mm)
Supermicro Motherboard X11SSL-CF (Retail)
| Length | 16.1 cm |
| Width | 12.4 cm |
| Height | 4.7 cm |
| Weight | 1.000000 kgs |
