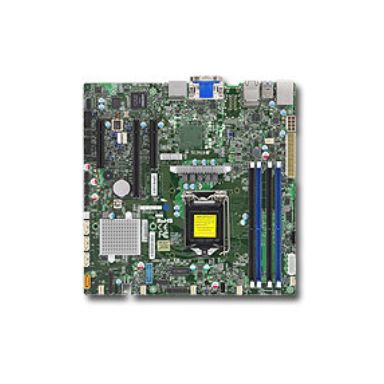

Supermicro Motherboard X11SSZ-F (Bulk)
In Stock
|
Call For Price
(0808 189 1246)
Motherboard chipset
Intel® C236
Trusted Platform Module (TPM)
Yes
Number of processors supported
1
Number of DIMM slots
4
Motherboard form factor
micro ATX
ECC supported by processor
Yes
Performance
Motherboard chipset
Intel® C236
RAID levels
0- 1- 5- 10
Trusted Platform Module (TPM)
Yes
Motherboard form factor
micro ATX
Processor
Processor manufacturer
Intel
ECC supported by processor
Yes
Processor thermal power (max)
80 W
Intel Xeon series
E3-1200
Processor socket
LGA 1151 (Socket H4)
Supported QPI
8 GT/s
Processor number of cores supported
4
Lithography
14 nm
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
1600-1866-2133 MHz
Maximum internal memory
64 GB
Maximum UDIMM memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
On-board graphics card model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
6
TPM connector
Yes
Number of SATA III connectors
4
Number of COM connectors
2
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
DVI-I ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I210
Features
Motherboard chipset
Intel® C236
Motherboard form factor
micro ATX
Harmonized System (HS) code
84733020
Expansion slots
PCI Express x4 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
4
Processor special features
Trusted Platform Module (TPM)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 60 °C
Storage relative humidity (H-H)
10 - 95%
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
224 mm
Depth
224 mm
Supermicro Motherboard X11SSZ-F (Bulk)
