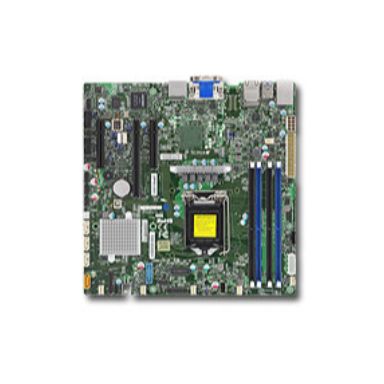

Supermicro Motherboard X11SSZ-F (Retail)
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
Intel C236
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Number of processors supported
1
Number of DIMM slots
4
Intel Virtualization Technology (Intel VT)
VT-x
Intel Trusted Execution Technology
Yes
Intel Quick Resume Technology
No
Intel AES New Instructions (Intel AES-NI)
Yes
Motherboard form factor
micro ATX
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C236
RAID levels
01510
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Intel Virtualization Technology (Intel VT)
VT-x
Intel Trusted Execution Technology
Yes
Intel Quick Resume Technology
No
Intel AES New Instructions (Intel AES-NI)
Yes
Motherboard form factor
micro ATX
Processor
Processor manufacturer
Intel
Processor thermal power (max)
80 W
Intel Xeon series
E3-1200
Processor socket
LGA 1151 (Socket H4)
Supported QPI
8 GT/s
Processor number of cores supported
4
Lithography
14 nm
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
160018662133 MHz
Maximum internal memory
64 GB
Maximum UDIMM memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
6
TPM connector
Yes
Number of SATA III connectors
4
Number of COM connectors
2
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
DVI-I ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Features
Motherboard chipset
Intel C236
Motherboard form factor
micro ATX
Expansion slots
PCI Express x4 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
Processor special features
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
1.2
Intel Virtualization Technology (Intel VT)
VT-x
Intel Trusted Execution Technology
Yes
Intel Quick Resume Technology
No
Intel AES New Instructions (Intel AES-NI)
Yes
Intel vPro⢠Platform Eligibility
Yes
Intel Server Management Software
No
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 60 °C
Storage relative humidity (H-H)
10 - 95%
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
8.82" (224 mm)
Depth
8.82" (224 mm)
Supermicro Motherboard X11SSZ-F (Retail)
| Length | 11 cm |
| Width | 11.25 cm |
| Height | 2.5 cm |
| Weight | 1.000000 kgs |
