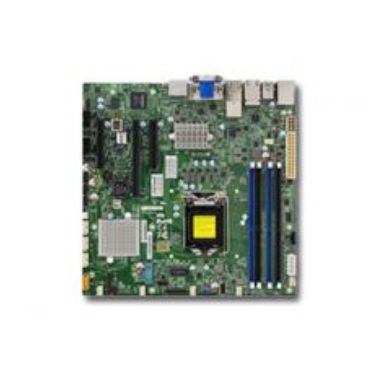

Supermicro Motherboard X11SSZ-TLN4F (Retail)
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
Intel C236
Number of processors supported
1
Number of DIMM slots
4
Intel Virtualization Technology (Intel VT)
VT-x
Intel Trusted Execution Technology
Yes
Motherboard form factor
micro ATX
Component for
Server
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel C236
RAID levels
01510
Intel Virtualization Technology (Intel VT)
VT-x
Intel Trusted Execution Technology
Yes
Motherboard form factor
micro ATX
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
80 W
Intel Xeon series
E3-1200
Processor socket
LGA 1151 (Socket H4)
Supported QPI
8 GT/s
Processor number of cores supported
4
Lithography
14 nm
Memory
Supported memory types
DDR4-SDRAM
Memory voltage
1.2 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
160018662133 MHz
Maximum internal memory
64 GB
Maximum UDIMM memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
01510
RAID support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
6
TPM connector
Yes
Number of SATA III connectors
4
Number of COM connectors
2
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
4
DVI-I ports quantity
1
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Features
Motherboard chipset
Intel C236
Motherboard form factor
micro ATX
Component for
Server
Expansion slots
PCI Express x4 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
BIOS
BIOS type
AMI
BIOS memory size
16 Mbit
ACPI version
4
Processor special features
Intel Virtualization Technology (Intel VT)
VT-x
Intel Trusted Execution Technology
Yes
Weight & dimensions
Width
9.45" (240 mm)
Depth
9.45" (240 mm)
Other features
PCI Express x4 (Gen 3.x) slots
2
Maximum UDIMM memory
64 GB
Number of processors supported
1
Number of DIMM slots
4
Intel Xeon series
E3-1200
Supported DIMM module capacities
4GB 8GB 16GB
Supermicro Motherboard X11SSZ-TLN4F (Retail)
| Length | 11.5 cm |
| Width | 11 cm |
| Height | 2.25 cm |
| Weight | 1.000000 kgs |
