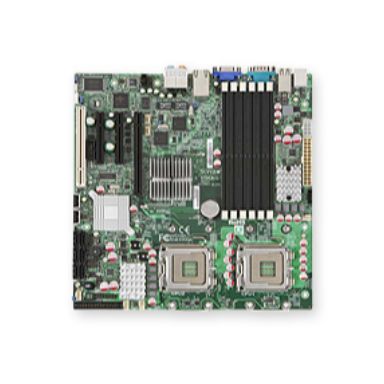

Supermicro X7DCA-L

Component for

Server

Motherboard form factor

micro ATX

Component for

Server

Motherboard form factor

micro ATX

Motherboard chipset

Intel 5100

Number of SATA connectors

6

Sustainability certificates

RoHS

Motherboard chipset

Intel 5100

Audio output channels

7.1 channels

Processor manufacturer

Intel

Number of processors supported

2

Processor socket

LGA 771 (Socket J)

Processor number of cores supported

4

Supported memory types

DDR2-SDRAM

Supported memory clock speeds

533667 MHz

Number of DIMM slots

6

Maximum internal memory

48 GB

Supported DIMM module capacities

1GB 2GB 4GB 512MB 8GB

ECC

Yes

Memory channels

Dual-channel

Memory voltage

1.8 V

RAID support

Yes

HDD interface

Serial ATA II

RAID levels

1510

On-board graphics adapter model

XGI Z9S

On-board graphics adapter memory

32 MB

USB 2.0 connectors

4

Number of SATA connectors

6

Number of SATA II connectors

6

Chassis intrusion connector

Yes

VGA (D-Sub) ports quantity

1

USB 2.0 ports quantity

4

Serial ports quantity

1

PS/2 ports quantity

2

Microphone in

Yes

Headphone outputs

1

Ethernet LAN (RJ-45) ports

2

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-Fi

No

LAN controller

Intel 82573L

Component for

Server

Motherboard form factor

micro ATX

Motherboard chipset

Intel 5100

Audio output channels

7.1 channels

PCI Express x16 slots

1

PCI Express x8 slots

1

PCI Express x4 slots

1

PCI slots

1

BIOS type

Phoenix

BIOS memory size

16 Mbit

Operating temperature (T-T)

10 - 35 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

8 - 90%

Storage relative humidity (H-H)

5 - 95%

Audio output channels

7.1 channels

Width

254 mm

Depth

254 mm
