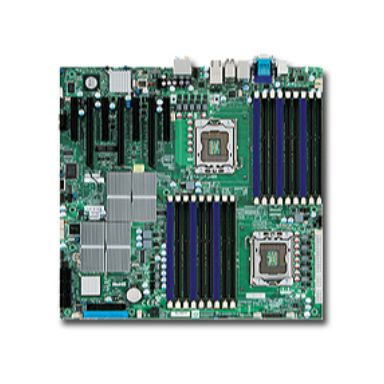

Supermicro X8DAH+-F (Bulk)
In Stock
|
$564.77
$677.72 (Inc. VAT)
Design
Motherboard form factor
Extended ATX
Technical details
Motherboard form factor
Extended ATX
Motherboard chipset
Intel 5520
On-board graphics adapter
Yes
Performance
Motherboard chipset
Intel 5520
Processor
Intel Xeon series
E5500E5600L5500L5600X5500X5600
Memory
Supported memory clock speeds
80010661333 MHz
Number of DIMM slots
18
Supported DIMM module capacities
16GB1GB2GB4GB8GB
ECC
Yes
Non-ECC
Yes
Supported RDIMM clock speeds
80010661333 MHz
Supported UDIMM clock speeds
80010661333 MHz
Maximum RDIMM memory
288 GB
Maximum UDIMM memory
48 GB
Memory voltage
1.351.5 V
Storage controllers
RAID levels
01510
Graphics
On-board graphics adapter
Yes
Internal I/O
USB 2.0 connectors
4
Number of IEEE1394 connectors
2
Number of chassis fan connectors
6
Chassis intrusion connector
Yes
Rear panel I/O ports
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
6
Serial ports quantity
1
PS/2 ports quantity
2
Ethernet LAN (RJ-45) ports
3
Network
Ethernet interface type
Gigabit Ethernet
Features
Motherboard form factor
Extended ATX
Motherboard chipset
Intel 5520
Certification
RoHS
Expansion slots
PCI Express slots version
2
PCI Express x16 slots
2
PCI Express x8 slots
4
PCI Express x4 slots
1
BIOS
BIOS type
AMI
BIOS memory size
32 Mbit
ACPI version
3
Operational conditions
Operating temperature (T-T)
10 - 35 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
5 - 95%
Certificates
Certification
RoHS
Weight & dimensions
Width
347 mm
Depth
330 mm
