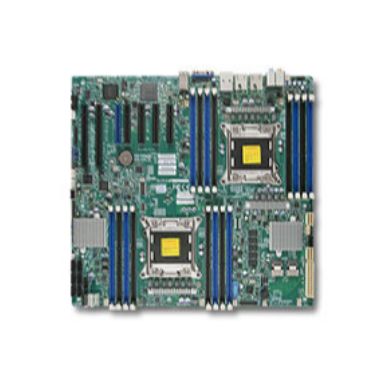

Supermicro X9DAX-7F (Bulk)
Out of Stock
|
Call For Price (0808 189 1246)
Design
Component for
Server
Motherboard form factor
Extended ATX
Technical details
Component for
Server
Motherboard form factor
Extended ATX
Motherboard chipset
Intel C602
PCI Express x8 (Gen 3.x) slots
3
Performance
Motherboard chipset
Intel C602
Processor
Processor manufacturer
Intel
Number of processors supported
2
Processor socket
LGA 2011 (Socket R)
Supported QPI
8 GT/s
Intel Xeon series
E5-2600
Memory
Maximum LRDIMM memory
1000 GB
Supported memory types
DDR3-SDRAM
Supported memory clock speeds
8001066133316001866 MHz
Number of DIMM slots
16
Maximum internal memory
1000 GB
Supported DIMM module capacities
16GB1GB2GB32GB4GB64GB8GB
ECC
Yes
Non-ECC
Yes
Maximum RDIMM memory
512 GB
Maximum UDIMM memory
128 GB
Memory voltage
1.351.5 V
Storage controllers
HDD interface
Serial ATA IISerial ATA IIISerial Attached SCSI (SAS)
RAID levels
0156105060
Internal I/O
USB 2.0 connectors
3
TPM connector
Yes
Number of SATA III connectors
2
Number of SATA II connectors
8
Integrated SAS ports
8
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
Microphone in
Yes
IPMI LAN (RJ-45) port
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi
No
LAN controller
Intel I350 Realtek RTL8201N
Features
Component for
Server
Motherboard form factor
Extended ATX
Motherboard chipset
Intel C602
Expansion slots
PCI Express x16 (Gen 3.x) slots
2
PCI Express x8 (Gen 3.x) slots
3
BIOS
BIOS type
UEFI AMI
ACPI version
4
Operational conditions
Operating temperature (T-T)
10 - 35 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
347.4 mm
Depth
330 mm
Packaging content
User guide
Yes
Supermicro X9DAX-7F (Bulk)
| Weight | 1.00 kgs |
