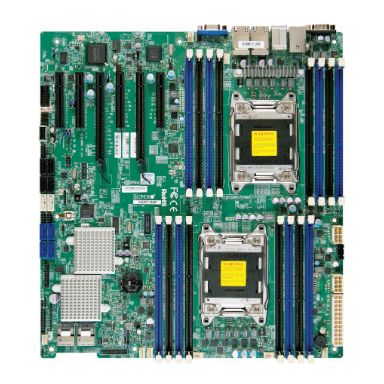

Supermicro X9DR7-LN4F
In Stock
|
$672.73
$807.28 (Inc. VAT)
Motherboard chipset
Intel® C602
Serial port headers
1
Number of processors supported
2
Number of DIMM slots
16
Motherboard form factor
Extended ATX
Component for
Server
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel® C602
RAID levels
0-1-5-10
Motherboard form factor
Extended ATX
Component for
Server
Processor
Processor manufacturer
Intel
Processor thermal power (max)
135 W
Intel Xeon series
E5-2600
Processor socket
LGA 2011 (Socket R)
Supported QPI
6.4-7.2-8 GT/s
Processor number of cores supported
39544
Memory
Supported memory types
DDR3-SDRAM
Memory voltage
1.35-1.5 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
800-1066-1333-1600 MHz
Maximum internal memory
512 GB
Maximum RDIMM memory
512 GB
Maximum UDIMM memory
128 GB
Storage controllers
RAID levels
0-1-5-10
Graphics
On-board graphics adapter model
Matrox G200eW
Internal I/O
USB 2.0 connectors
5
TPM connector
Yes
Serial port headers
1
Power fan connector
Yes
Number of SATA III connectors
2
Number of SATA II connectors
4
Integrated SAS ports
8
Rear panel I/O ports
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
4
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel® C602
Motherboard form factor
Extended ATX
Component for
Server
Expansion slots
PCI Express x8 slots
4
PCI Express x16 slots
2
PCI Express slots version
3
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
4
Processor special features
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
305 mm
Depth
332 mm
Supermicro X9DR7-LN4F
