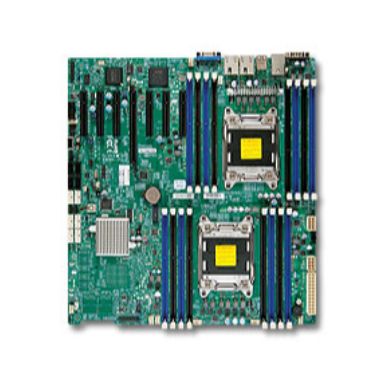

Supermicro X9DRH-IF (Bulk)

Component for

Server

Motherboard form factor

Extended ATX

Component for

Server

Motherboard form factor

Extended ATX

Motherboard chipset

Intel C602

Trusted Platform Module (TPM) version

1.2

Trusted Platform Module (TPM)

Yes

Intelligent Platform Management Interface (IPMI) support

Yes

USB ports quantity

7

Sustainability certificates

RoHS

Motherboard chipset

Intel C602

Trusted Platform Module (TPM) version

1.2

Trusted Platform Module (TPM)

Yes

Processor manufacturer

Intel

Number of processors supported

2

Processor socket

LGA 2011 (Socket R)

Supported QPI

8 GT/s

System bus rate

8 GT/s

Processor system buses supported

2600 MHz

Supported memory types

DDR3-SDRAM

Supported memory clock speeds

800106613331600 MHz

Number of DIMM slots

16

Maximum internal memory

512 GB

ECC

Yes

Non-ECC

Yes

Supported RDIMM module capacity

16GB 1GB 2GB 32GB 4GB 8GB

Supported UDIMM module capacity

16GB 1GB 2GB 32GB 4GB 8GB

Maximum RDIMM memory

512 GB

Maximum UDIMM memory

128 GB

Memory voltage

1.351.5 V

HDD interface

Serial ATA II Serial ATA III

RAID levels

01510

USB 2.0 connectors

4

TPM connector

Yes

Number of SATA III connectors

2

Number of SATA II connectors

8

VGA (D-Sub) ports quantity

1

USB 2.0 ports quantity

3

Serial ports quantity

2

IPMI LAN (RJ-45) port

Yes

Ethernet LAN (RJ-45) ports

2

Ethernet LAN

Yes

Wi-Fi

No

LAN controller

Intel I350-CM2

Component for

Server

Motherboard form factor

Extended ATX

Motherboard chipset

Intel C602

Trusted Platform Module (TPM) version

1.2

Trusted Platform Module (TPM)

Yes

PCI Express slots version

3

PCI Express x16 slots

1

PCI Express x8 slots

6

BIOS type

AMI

BIOS memory size

128 Mbit

ACPI version

4

Intelligent Platform Management Interface (IPMI) support

Yes

Operating temperature (T-T)

10 - 35 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

8 - 90%

Storage relative humidity (H-H)

5 - 95%

Width

330 mm

Depth

304.8 mm
