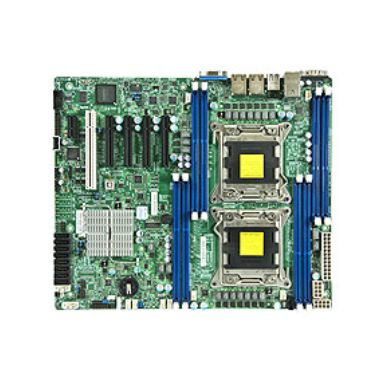

Supermicro X9DRL-IF
In Stock
|
$399.13
$478.96 (Inc. VAT)
Motherboard chipset
Intel® C602
Serial port headers
1
Parallel processing technology support
Not supported
On-board graphics adapter
Yes
Number of processors supported
1
Number of DIMM slots
8
Motherboard form factor
ATX
Component for
Workstation
Sustainability certificates
RoHS
Performance
Motherboard chipset
Intel® C602
RAID levels
0-1-5-10
Certification
Halogen Free
Motherboard form factor
ATX
Component for
Workstation
Processor
Processor manufacturer
Intel
System bus rate
8 GT/s
Intel Xeon series
E5-2600
Processor socket
LGA 2011 (Socket R)
Processor number of cores supported
8
Memory
Supported memory types
DDR3-SDRAM
Memory voltage
1.35-1.5 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
800-1066-1333-1600 MHz
Maximum RDIMM memory
256 GB
Maximum UDIMM memory
64 GB
Storage controllers
Supported storage drive interfaces
SATA II-SATA III
RAID levels
0-1-5-10
Graphics
Parallel processing technology support
Not supported
On-board graphics adapter
Yes
Internal I/O
Supported storage drive interfaces
SATA II-SATA III
USB 2.0 connectors
6
Serial port headers
1
Number of SATA III connectors
2
Number of SATA II connectors
8
Number of chassis fan connectors
8
Chassis intrusion connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
2
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® 82574L
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel® C602
Certification
Halogen Free
Motherboard form factor
ATX
Component for
Workstation
Expansion slots
PCI-X slots
1
PCI slots
1
PCI Express x8 slots
3
PCI Express x4 slots
1
PCI Express slots version
2.0-3.0
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
4
Processor special features
Certificates
Certification
Halogen Free
Weight & dimensions
Width
304.8 mm
Depth
254 mm
