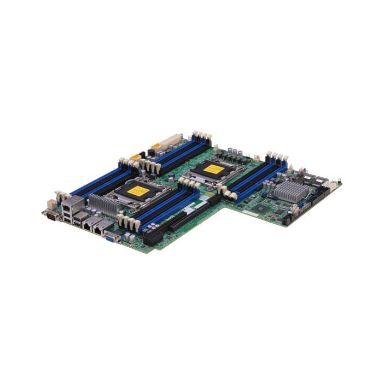

Supermicro X9DRW-3F
In Stock
|
$540.70
$648.84 (Inc. VAT)
Technical details
Motherboard chipset
Intel® C606
Serial port headers
1
Number of processors supported
2
Number of DIMM slots
16
Intel® Virtualization Technology (Intel® VT)
VT-d
Component for
Server
Sustainability certificates
RoHS
Compliance certificates
RoHS
Performance
Motherboard chipset
Intel® C606
RAID levels
0, 1, 5, 10
Intel® Virtualization Technology (Intel® VT)
VT-d
Component for
Server
Intelligent Platform Management Interface (IPMI) support
Yes
Processor
Processor manufacturer
Intel
Processor thermal power (max)
135 W
Intel Xeon series
E5-2600
Processor socket
LGA 2011 (Socket R)
Processor number of cores supported
6, 8
Memory
Supported memory types
DDR3-SDRAM
Memory channels
Dual-channel
Memory voltage
1.35,1.5 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
800,1066,1333,1600 MHz
Supported RDIMM module capacity
16GB, 2GB, 32GB, 4GB, 8GB
Supported UDIMM module capacity
1GB, 2GB, 4GB, 8GB
Maximum internal memory
512 GB
Maximum RDIMM memory
512 GB
Maximum UDIMM memory
128 GB
Storage controllers
Supported storage drive interfaces
Serial Attached SCSI (SAS)
RAID levels
0, 1, 5, 10
Graphics
On-board graphics card model
Matrox G200
Internal I/O
Supported storage drive interfaces
Serial Attached SCSI (SAS)
USB 2.0 connectors
2
Serial port headers
1
Number of SATA connectors
6
Number of SATA III connectors
2
Number of SATA II connectors
4
Number of chassis fan connectors
6
Chassis intrusion connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
2
IPMI LAN (RJ-45) port
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® I350
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel® C606
Component for
Server
Expansion slots
PCI Express slots version
3.0
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
4.0
Processor special features
Intel® Virtualization Technology (Intel® VT)
VT-d
Intelligent Platform Management Interface (IPMI) support
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
305 mm
Depth
330 mm
Other features
Supported RDIMM module capacity
16GB, 2GB, 32GB, 4GB, 8GB
Supported UDIMM module capacity
1GB, 2GB, 4GB, 8GB
Maximum UDIMM memory
128 GB
Number of processors supported
2
Number of DIMM slots
16
Intel Xeon series
E5-2600
Supermicro X9DRW-3F
