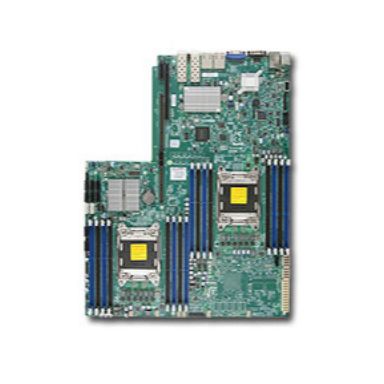

Supermicro X9DRW-ITPF

Motherboard chipset

Intel C602

Intelligent Platform Management Interface (IPMI) support

Yes

Sustainability certificates

RoHS

Motherboard chipset

Intel C602

Processor manufacturer

Intel

Number of processors supported

2

Processor socket

LGA 2011 (Socket R)

Processor number of cores supported

8

Supported QPI

8 GT/s

Intel Xeon series

E5-2600

Supported memory types

DDR3-SDRAM

Supported memory clock speeds

8001066133316001866 MHz

Number of DIMM slots

16

Maximum internal memory

1000 GB

Supported DIMM module capacities

16GB 1GB 2GB 4GB 64GB 8GB

ECC

Yes

Non-ECC

Yes

Memory voltage

1.351.5 V

HDD interface

Serial ATA II Serial ATA III

RAID levels

01510

Parallel processing technology support

Not supported

USB 2.0 connectors

2

TPM connector

Yes

Serial port headers

1

Number of SATA III connectors

2

Number of SATA II connectors

4

Number of chassis fan connectors

6

Chassis intrusion connector

Yes

VGA (D-Sub) ports quantity

1

USB 2.0 ports quantity

2

Serial ports quantity

1

IPMI LAN (RJ-45) port

Yes

Ethernet LAN (RJ-45) ports

3

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-Fi

No

Motherboard chipset

Intel C602

PCI Express x16 (Gen 3.x) slots

1

BIOS type

AMI

BIOS memory size

128 Mbit

ACPI version

4

Intelligent Platform Management Interface (IPMI) support

Yes

Operating temperature (T-T)

10 - 35 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

8 - 90%

Storage relative humidity (H-H)

5 - 95%

Width

325 mm

Depth

419 mm
