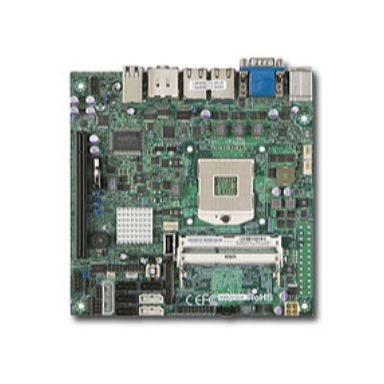

Supermicro X9SCV-QV4 (Bulk)

Motherboard chipset family

Intel

Motherboard chipset

Intel QM67

Serial port headers

1

On-board graphics adapter

Yes

Motherboard form factor

mini ITX

Component for

mini PC

Memory bandwidth (max)

6 GB/s

Motherboard chipset family

Intel

Motherboard chipset

Intel QM67

RAID levels

01510

Certification

RoHS

Motherboard form factor

mini ITX

Component for

mini PC

Processor manufacturer

Intel

Processor thermal power (max)

45 W

Compatible processor series

Intel Celeron

Processor socket

Socket G2

Number of memory slots

2

Memory bandwidth (max)

6 GB/s

Memory slots type

SO-DIMM

Supported memory types

DDR3-SDRAM

Memory voltage

1.5 V

Non-ECC

Yes

Supported memory clock speeds

106613331600 MHz

Supported memory module capacities

1GB 2GB 4GB 8GB

Maximum internal memory

16 GB

Supported storage drive interfaces

Serial ATA II Serial ATA III

RAID levels

01510

On-board graphics adapter

Yes

Graphics adapter family

Intel

Supported storage drive interfaces

Serial ATA II Serial ATA III

USB 2.0 connectors

4

TPM connector

Yes

Serial port headers

1

Power fan connector

Yes

Number of SATA connectors

6

Number of SATA III connectors

2

Number of SATA II connectors

4

Number of Parallel ATA connectors

1

USB 2.0 ports quantity

6

VGA (D-Sub) ports quantity

1

Serial ports quantity

1

HDMI ports quantity

2

Ethernet LAN (RJ-45) ports

2

Ethernet LAN

Yes

LAN controller

Intel 82574L Intel WG82579LM

Ethernet interface type

Gigabit Ethernet

Power source type

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel QM67

Certification

RoHS

Motherboard form factor

mini ITX

Component for

mini PC

PCI Express x16 (Gen 2.x) slots

1

BIOS type

UEFI

BIOS memory size

64 Mbit

ACPI version

4

Power source type

ATX

Graphics adapter family

Intel

Certification

RoHS

Bundled software

SuperDoctor III

Watch Dog

Width

171.5 mm

Depth

171.5 mm

Bundled software

SuperDoctor III

Watch Dog
