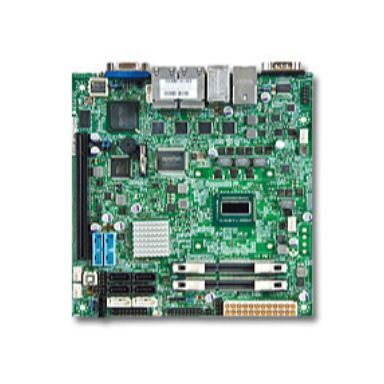

Supermicro X9SPV-F-3217UE

Motherboard chipset family

Intel

Motherboard chipset

Intel QM77 Express

PC health monitoring

Fan LED Temperature Voltage

Motherboard form factor

mini ITX

Motherboard chipset family

Intel

Motherboard chipset

Intel QM77 Express

RAID levels

01510

PC health monitoring

Fan LED Temperature Voltage

Motherboard form factor

mini ITX

Processor manufacturer

Intel

Processor frequency

1.6 GHz

Processor cores

2

Processor model

i3-3217UE

Processor thermal power (max)

17 W

Intel Core i3/i5/i7/i9 series

i3-3xxx

Compatible processor series

Intel Core™ i3

System bus rate

5 GT/s

Processor socket

BGA 1023

Number of memory slots

2

Memory slots type

SO-DIMM

Supported memory types

DDR3-SDRAM

Memory channels

Dual-channel

Memory voltage

1.351.5 V

ECC

Yes

Supported memory clock speeds

10661333 MHz

Supported memory module capacities

2GB 4GB 8GB

Maximum internal memory

16 GB

Unbuffered memory

Yes

Supported storage drive interfaces

Serial ATA II Serial ATA III

RAID levels

01510

Graphics adapter family

Intel

Graphics adapter

HD Graphics 4000

Supported storage drive interfaces

Serial ATA II Serial ATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Number of SATA III connectors

2

Number of SATA II connectors

4

Number of COM connectors

1

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

1

Ethernet LAN (RJ-45) ports

3

COM ports quantity

1

Ethernet LAN

Yes

Wi-Fi

No

LAN controller

Intel 82574L Realtek RTL8201F

Ethernet interface type

10 Gigabit Ethernet Fast Ethernet Gigabit Ethernet

Power source type

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel QM77 Express

PC health monitoring

Fan LED Temperature Voltage

Motherboard form factor

mini ITX

PCI Express x1 (Gen 2.x) slots

1

BIOS type

AMI

BIOS memory size

128 Mbit

ACPI version

2

Power source type

ATX

Graphics adapter family

Intel

Graphics adapter

HD Graphics 4000

Width

171.5 mm

Depth

171.5 mm

Processor frequency

1.6 GHz
