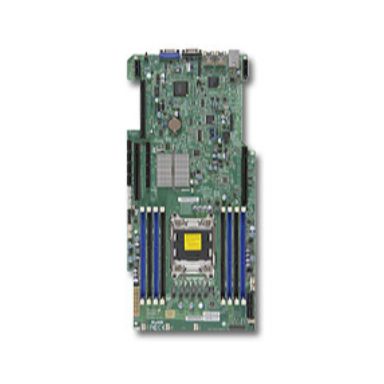

Supermicro X9SRG-F (Bulk)

Component for

Server

Component for

Server

Motherboard chipset

Intel C602

PCI Express x8 (Gen 3.x) slots

1

Motherboard chipset

Intel C602

Processor manufacturer

Intel

Number of processors supported

1

Processor socket

LGA 2011 (Socket R)

Processor number of cores supported

12

Thermal power

135 W

Intel Xeon series

E5-1600E5-2600

Supported memory types

DDR4-SDRAM

Supported memory clock speeds

1066133316001866 MHz

Number of DIMM slots

8

Maximum internal memory

512 GB

Supported DIMM module capacities

16GB1GB2GB32GB4GB8GB

ECC

Yes

Non-ECC

Yes

Memory voltage

1.351.5 V

HDD interface

Serial ATA IISerial ATA III

RAID levels

01510

TPM connector

Yes

Number of SATA III connectors

2

Number of SATA II connectors

4

VGA (D-Sub) ports quantity

1

USB 2.0 ports quantity

6

Serial ports quantity

1

PS/2 ports quantity

1

Ethernet LAN (RJ-45) ports

3

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-Fi

No

Wake-on-LAN ready

Yes

LAN controller

Intel I350

Component for

Server

Motherboard chipset

Intel C602

PCI Express x16 (Gen 3.x) slots

2

PCI Express x8 (Gen 3.x) slots

1

BIOS type

AMI

BIOS memory size

64 Mbit

ACPI version

4

Width

196 mm

Depth

423 mm
