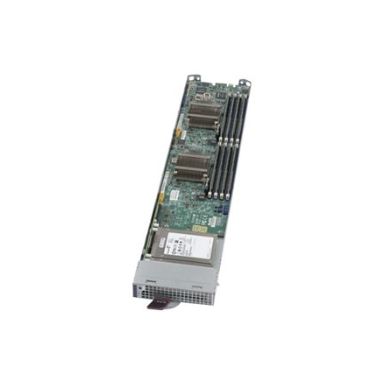

Supermicro MicroBlade MBI-6218G-T41X-PACK
In Stock
|
$2380.37
$2856.44 (Inc. VAT)
Hard drive
Hot-swap HDD bays
Yes
Management features
PC health monitoring
CPU- Fan- Temperature
Processor
Built-in processor
No
Processor socket
Socket SP3
Processor family
AMD
Number of processors supported
1
Compatible processor series
AMD EPYC
Design
80 PLUS certification
80 PLUS Platinum
On/off switch
Yes
Number of fans
4 fan(s)
Fan diameter
4 cm
LED indicators
Yes
Product colour
Black
Chassis type
Rack (1U)
Cooling type
Active
Memory
Supported RDIMM clock speeds
3200 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
8
Memory form factor
288-pin DIMM
Maximum internal memory
2000 GB
ECC
Yes
Storage
Number of storage drives supported
12
Number of 2.5" bays
10
Supported storage drive interfaces
PCI Express- Serial ATA III
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5-M.2
Supported storage drive types
HDD & SSD
Performance
PC health monitoring
CPU- Fan- Temperature
Integrated BMC with IPMI
Yes
Backplanes support
Yes
Graphics
On-board graphics card model
Aspeed AST2500
Network
LAN controller
Broadcom 57416
Ethernet LAN data rates
10-100-1000-10000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
7
Number of SATA III connectors
2
VGA (D-Sub) ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x16 slots
3
PCI Express slots version
4
Number of M.2 (M) slots
2
Features
Integrated BMC with IPMI
Yes
Backplanes support
Yes
Harmonized System (HS) code
84714100
Technical details
Number of storage drives supported
12
Number of 2.5" bays
10
On/off switch
Yes
Number of fans
4 fan(s)
Fan diameter
4 cm
Integrated BMC with IPMI
Yes
Chassis type
Rack (1U)
Backplanes support
Yes
Harmonized System (HS) code
84714100
Sustainability certificates
RoHS
Colour
Product colour
Black
Indication
LED indicators
Yes
Logistics data
Harmonized System (HS) code
84714100
BIOS
BIOS type
AMI
BIOS memory size
32 Mbit
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
2.6 - 6.1 A
DC output current (+12 V)
42 A
Number of redundant power supplies installed
1
Number of main power supplies
1
Redundant power supply (RPS) support
Yes
Power supply
500 W
80 PLUS certification
80 PLUS Platinum
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Height
43 mm
Depth
597 mm
Package weight
20.9 kg
