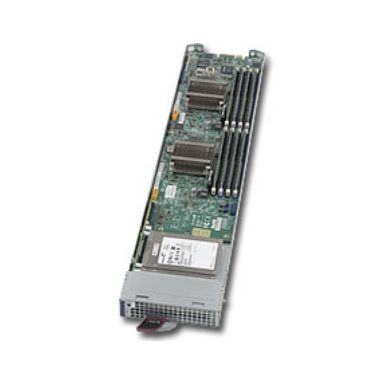

Supermicro MicroBlade MBI-6218G-T81X
In Stock
|
Call For Price
(0808 189 1246)
Processor
Thermal Monitoring Technologies
Yes
Thermal Design Power (TDP)
65 W
Supported instruction sets
AVX 2.0
Stepping
Y0
Scalability
1S
Processor threads
32
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Broadwell
Processor code
SR2LZ
PCI Express configurations
1x16,1x4,1x8
Memory voltage supported by processor
1.2 V
Memory types supported by processor
DDR3-SDRAM,DDR4-SDRAM
Memory channels supported by processor
Dual
Maximum number of PCI Express lanes
32
Maximum internal memory supported by processor
128 GB
Idle States
Yes
Execute Disable Bit
Yes
Embedded options available
No
ECC supported by processor
Yes
Processor cache
24 MB
Conflict-Free processor
Yes
Processor series
Intel Xeon D-1500
Processor frequency
1.8 GHz
Processor boost frequency
2.4 GHz
Number of processors installed
1
Processor model
D-1581
Processor socket
BGA 1667
Processor cores
16
Processor manufacturer
Intel
Motherboard chipset
Intel® C236
Processor family
Intel® Xeon® D
Memory
Memory slots
4
Maximum internal memory
128 GB
Internal memory type
DDR4-SDRAM
ECC
Yes
Storage
Optical drive type
No
HDD size
2.5"
HDD interface
Serial ATA III
Network
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express slots version
2.0,3.0
Optical drive
Optical drive type
No
Design
Optical drive type
No
Performance
BIOS type
EEPROM
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® OS Guard
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Turbo Boost Technology
2.0
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel® Secure Key
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel Enhanced Halt State
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
1.00
Intel Secure Key Technology version
1.00
UART
Yes
Processor ARK ID
93357
CPU configuration (max)
1
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Certificates
Certification
FCC, EN55022, EN55024, EN61000-3-2, EN61000-3-3, CE
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Ethernet interface type
10 Gigabit Ethernet
CPU configuration (max)
1
BIOS type
EEPROM
Number of 2.5" bays
1
Weight & dimensions
Width
125.5 mm
Weight
2.27 kg
Height
30.5 mm
Depth
589.3 mm
Other features
CPU configuration (max)
1
Supermicro MicroBlade MBI-6218G-T81X
