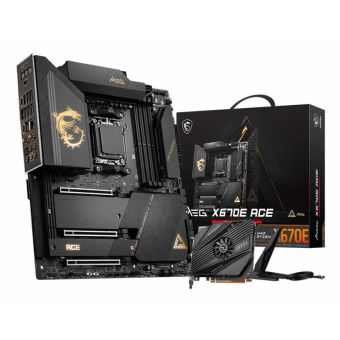

MSI MEG X670E ACE motherboard AMD X670 Socket AM5 Extended ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD X670

Motherboard form factor

Extended ATX

Component for

PC

Audio output channels

7.1 channels

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 Home x64, Windows 11 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD X670

RAID levels

0, 1, 10

Audio output channels

7.1 channels

Motherboard form factor

Extended ATX

Component for

PC

Audio connector

Yes

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen™ 7

Maximum number of SMP processors

1

Processor socket

Socket AM5

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Maximum internal memory

128 GB

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA II

RAID levels

0, 1, 10

USB 3.2 Gen 2 (3.1 Gen 2) connectors

2

Front panel connector

Yes

Audio connector

Yes

Supported storage drive interfaces

M.2, SATA II

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Number of SATA III connectors

6

CPU fan connector

Yes

Chassis intrusion connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

8

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 2.0 ports quantity

4

S/PDIF out port

Yes

Ethernet LAN (RJ-45) ports

1

DisplayPorts quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

3

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Ethernet interface type

10 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.2

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Windows operating systems supported

Windows 10 Home x64, Windows 11 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD X670

Audio output channels

7.1 channels

Motherboard form factor

Extended ATX

Component for

PC

Audio chip

Realtek ALC4082

Windows operating systems supported

Windows 10 Home x64, Windows 11 x64

Drivers included

Yes

Width

277 mm

Depth

304.8 mm

Drivers included

Yes

Cables included

SATA
