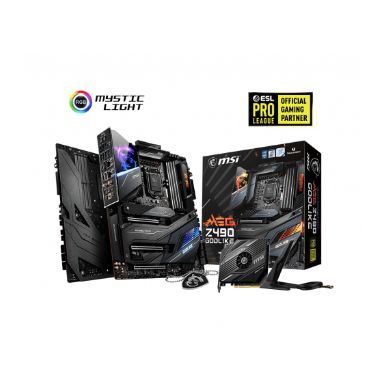

MSI MEG Z490 GODLIKE 'E-ATX, LGA1200, DDR4-5000MHz, Dual LAN, 802.11ax WiFi 6 + BT 5.1, USB 3.2, Lig
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Total number of SATA connectors | 6 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2-SATA |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Power fan connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 6 |
| Number of chassis fan connectors | 6 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Number of displays supported | 2 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z490 |
| Parallel processing technology support | 2-Way SLI-3-Way CrossFireX |
| Cooling type | Passive |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Total number of SATA connectors | 6 |
| Number of mounting holes | 9 |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 6 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z490 |
| RAID levels | 0-1-5-10 |
| Cooling type | Passive |
| Certification | CE |
| Audio output channels | 7.1 channels |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core i9 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1200 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133-2400-2666-2933-3000-3200-3300-3333-3400-3466-3600-3733-3866-4000-4133-4200-4266-4300-4400-4800 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Number of HDDs supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2-SATA |
| RAID levels | 0-1-5-10 |
| Graphics | |
| Number of displays supported | 2 |
| Parallel processing technology support | 2-Way SLI-3-Way CrossFireX |
| Maximum resolution | 4096 x 2304 pixels |
| DirectX version | 12.0 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB connector type | USB Type-A- USB Type-C |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Thunderbolt ports quantity | 1 |
| S/PDIF out port | Yes |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Digital audio optical out | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)-Wi-Fi 6 (802.11ax) |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel® I219-V- Realtek RTL8125-CG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Features | |
| Power source type | ATX |
| Number of mounting holes | 9 |
| Windows operating systems supported | Windows 10 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z490 |
| Cooling type | Passive |
| Certification | CE |
| Audio output channels | 7.1 channels |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Audio chip | Realtek ALC1200 |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| DirectX version | 12.0 |
| Certificates | |
| Certification | CE |
| Software | |
| Windows operating systems supported | Windows 10 |
| Drivers included | Yes |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
