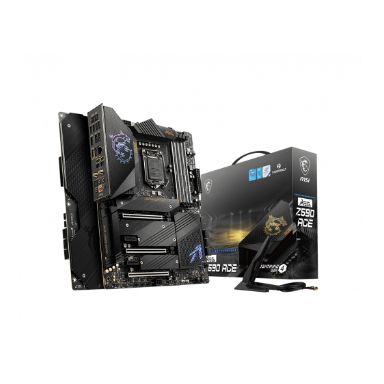

MSI MEG Z590 ACE motherboard Intel Z590 LGA 1200 ATX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2- SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
6
Number of chassis fan connectors
6
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z590
Parallel processing technology support
2-Way SLI- 3-Way CrossFireX
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z590
RAID levels
0- 1- 10
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core⢠i3- Intel® Core⢠i5- Intel® Core⢠i7- Intel® Core⢠i9- Intel® Pentium®
Processor socket
LGA 1200
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133-2666-2933-3200-4000-4400-4800-5600 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- SATA III
RAID levels
0- 1- 10
Graphics
Parallel processing technology support
2-Way SLI- 3-Way CrossFireX
Maximum resolution
4096 x 2160 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 2.0 ports quantity
2
Thunderbolt ports quantity
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 6 (802.11ax)
LAN controller
Intel I225-V
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX210
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z590
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC4082
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
4
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 slots
3
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Video
Maximum resolution
4096 x 2160 pixels
Software
Windows operating systems supported
Windows 10 x64
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Height
70 mm
Weight
800 g
Width
305 mm
Depth
244 mm
Other features
Height
70 mm
Weight
800 g
MSI MEG Z590 ACE motherboard Intel Z590 LGA 1200 ATX
