Scanning
Scanner resolution
0.13 mm
Type
Fixed bar code reader
Yaw reading angle
-75 - 75°
Tilt reading angle
0 - 360°
Sensor type
LED
Scanner type
1D/2D
Pitch reading angle
-65 - 65°
Light levels (direct sunlight)
0 - 86.1 lx
Optical sensor resolution (W x H)
1280 x 800 pixels
Ports & interfaces
Connectivity technology
Wired
Standard interfaces
USB
Performance
LED indicators
Yes
International Protection (IP) code
IP52
Product colour
White
Certification
EN62471 - IEC62471
Buzzer
Yes
Country of origin
China
Image formats supported
BMP- JPEG
Ambient lighting
Yes
Print contrast
0.25
Light levels (direct sunlight)
0 - 86.1 lx
Design
LED indicators
Yes
International Protection (IP) code
IP52
Product colour
White
Certification
EN62471 - IEC62471
Power
Power consumption
500 mA
Power source type
DC
Input voltage
5 V
Weight & dimensions
Width
80 mm
Height
90 mm
Weight
240 g
Technical details
Type
Fixed bar code reader
LED indicators
Yes
International Protection (IP) code
IP52
Product colour
White
Certification
EN62471 - IEC62471
Buzzer
Yes
Sustainability certificates
RoHS
Harmonized System (HS) code
84716070
Warranty period
3 year(s)
Packaging data
Cables included
USB
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Light levels (direct sunlight)
0 - 86.1 lx
Packaging content
Cables included
USB
Logistics data
Harmonized System (HS) code
84716070

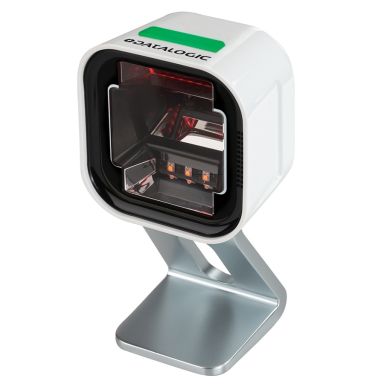

Datalogic MG1502-10241-0200 barcode reader
