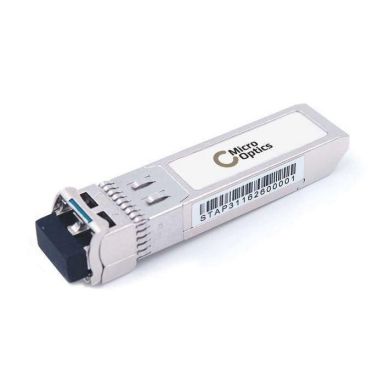

Lanview MO-C-S311X2-3CDL10 network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
In Stock
|
$45.85
$55.02 (Inc. VAT)
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Cabling technology
10GBASE-LR
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Technical details
Hot-Plug support
Yes
Auto MDI/MDI-X
Yes
Maximum transfer distance
10000 m
Wavelength
1310 nm
Fiber cable diameters supported (core/cladding)
9/125 µm
Cabling technology
10GBASE-LR
Performance
Hot-Plug support
Yes
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Auto MDI/MDI-X
Yes
Maximum transfer distance
10000 m
Wavelength
1310 nm
Fiber cable diameters supported (core/cladding)
9/125 µm
Cabling technology
10GBASE-LR
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Single-mode fiber (SMF) supported
Yes
SFP transceiver standard
LR
Harmonized System (HS) code
85369010
Features
Hot-Plug support
Yes
Certification
MSA
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
13.4 mm
Depth
56.5 mm
Height
8.5 mm
Certificates
Certification
MSA
Logistics data
Harmonized System (HS) code
85369010
Lanview MO-C-S311X2-3CDL10 network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
