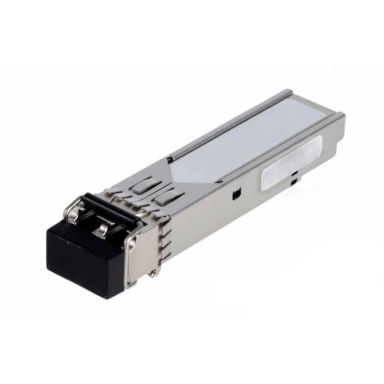

Lanview MO-P-S85123-3CLM network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
In Stock
|
$22.23
$26.68 (Inc. VAT)
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Cabling technology
1000BASE-SX
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Technical details
Hot-Plug support
Yes
Auto MDI/MDI-X
Yes
Maximum transfer distance
550 m
Wavelength
850 nm
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Compatible products
HP/Compaq J4858A, J4858C, J4858-61201, MO-SFP2134H
Cabling technology
1000BASE-SX
Performance
Hot-Plug support
Yes
Compatible products
HP/Compaq J4858A, J4858C, J4858-61201, MO-SFP2134H
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Auto MDI/MDI-X
Yes
Maximum transfer distance
550 m
Wavelength
850 nm
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Cabling technology
1000BASE-SX
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Multi-mode fiber (MMF) supported
Yes
SFP transceiver standard
SX
Harmonized System (HS) code
85369010
Features
Hot-Plug support
Yes
Certification
MSA
Compatible products
HP/Compaq J4858A, J4858C, J4858-61201, MO-SFP2134H
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
13.4 mm
Depth
56.5 mm
Height
8.5 mm
Certificates
Certification
MSA
Logistics data
Harmonized System (HS) code
85369010
Lanview MO-P-S85123-3CLM network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
