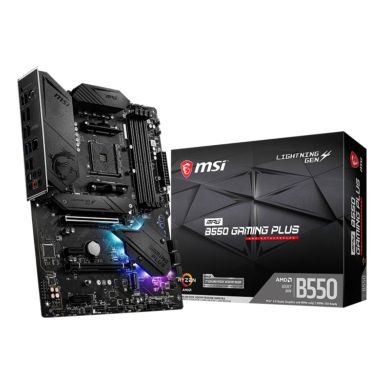

MSI MPG B550 Gaming Plus AMD B550 Socket AM4 ATX
In Stock
|
$115.58
$138.70 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
12V power connector
Yes
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
6
Number of chassis fan connectors
6
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
PC health monitoring
CPU- Fan- Temperature
Parallel processing technology support
2-Way CrossFireX
Motherboard form factor
ATX
Component for
PC
Number of mounting holes
9
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
RAID levels
0- 1- 10
PC health monitoring
CPU- Fan- Temperature
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
SATA III
RAID levels
0- 1- 10
Graphics
Maximum graphics card memory
16000 MB
Parallel processing technology support
2-Way CrossFireX
Maximum resolution
4096 x 2160 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
4
S/PDIF out port
Yes
PS/2 ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Digital audio optical out
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek 8111H
Ethernet interface type
Gigabit Ethernet
Features
Number of mounting holes
9
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
PC health monitoring
CPU- Fan- Temperature
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC892
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Video
Maximum graphics card memory
16000 MB
Maximum resolution
4096 x 2160 pixels
Software
Drivers included
Yes
Weight & dimensions
Height
65 mm
Weight
1 kg
Width
305 mm
Depth
244 mm
MSI MPG B550 Gaming Plus AMD B550 Socket AM4 ATX
