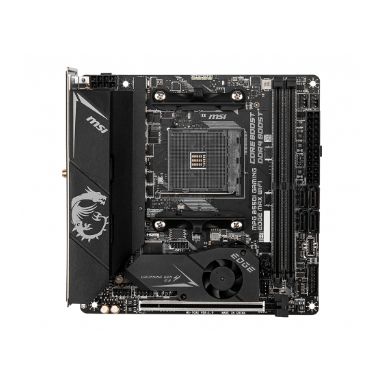

MSI MPG B550I GAMING EDGE MAX WIFI motherboard AMD B550 Socket AM4 mini ITX
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Supported storage drive interfaces | M.2-SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Power fan connector | Yes |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | Fan- Temperature |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| RAID levels | 0-1-10 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | Fan- Temperature |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 3- AMD Ryzen 5- AMD Ryzen 7- 3rd Generation AMD Ryzen 9 |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Supported memory clock speeds | 1866-2133-2400-2667-2800-2933-3000-3066-3200-3466-3600-3733-3800-4000-4133-4266-4400-4466-4533-4600 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2-SATA III |
| RAID levels | 0-1-10 |
| Number of storage drives supported | 6 |
| Graphics | |
| Maximum graphics adapter memory | 2048 MB |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| DirectX version | 12.0 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB connector type | USB Type-A- USB Type-C |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 1 |
| S/PDIF out port | Yes |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 4 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)-Wi-Fi 6 (802.11ax) |
| LAN controller | Realtek RTL8125B |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Features | |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | Fan- Temperature |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio chip | Realtek ALC1200 |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.8 |
| Video | |
| Maximum graphics adapter memory | 2048 MB |
| Maximum resolution | 4096 x 2160 pixels |
| DirectX version | 12.0 |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Drivers included | Yes |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
