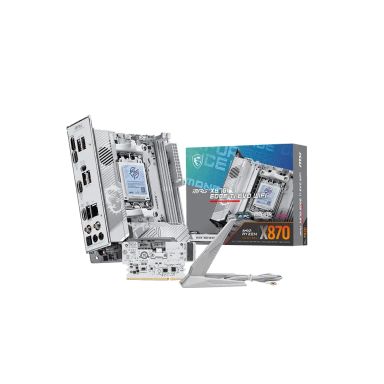

MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ITX

Number of M.2 (M) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Total number of SATA connectors

2

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

mSATA ports quantity

0

Number of SATA connectors

0

Number of SATA III connectors

2

Number of SATA II connectors

0

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

Motherboard chipset family

AMD

Motherboard chipset

AMD X870

Supported processor sockets

Socket AM5

PC health monitoring

CPU, Fan, Temperature, Voltage

On-board graphics card

No

HDMI version

2.1

Motherboard form factor

mini ITX

Component for

PC

Total number of SATA connectors

2

Audio output channels

7.1 channels

Number of HDDs supported

2

Supported storage drive types

HDD & SSD

Motherboard chipset family

AMD

Motherboard chipset

AMD X870

RAID levels

0, 1, 5, 10

Supported processor sockets

Socket AM5

PC health monitoring

CPU, Fan, Temperature, Voltage

Audio output channels

7.1 channels

Motherboard form factor

mini ITX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Processor socket

Socket AM5

Number of memory slots

2

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

9000,8000,7000 MHz

Maximum internal memory

256 GB

Supported memory clock speed (max)

9000 MHz

ECC сompatibility

Non-ECC

Number of HDDs supported

2

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Number of storage drives supported

3

RAID support

Yes

On-board graphics card

No

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 2.0 ports quantity

0

VGA (D-Sub) ports quantity

0

S/PDIF out port

Yes

Microphone in

Yes

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

2

USB4 Gen 2x2 ports quantity

1

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

LAN controller

Realtek RTL8126

Ethernet interface type

5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Motherboard chipset family

AMD

Motherboard chipset

AMD X870

Supported processor sockets

Socket AM5

PC health monitoring

CPU, Fan, Temperature, Voltage

Audio output channels

7.1 channels

Motherboard form factor

mini ITX

Component for

PC

Audio chip

Realtek ALC4080

Product colour

White

Number of M.2 (M) slots

1

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

BIOS type

UEFI AMI

BIOS memory size

512 Mbit

ACPI version

6.5

System Management BIOS (SMBIOS) version

3.7

Width

170 mm

Depth

170 mm

mSATA ports quantity

0
