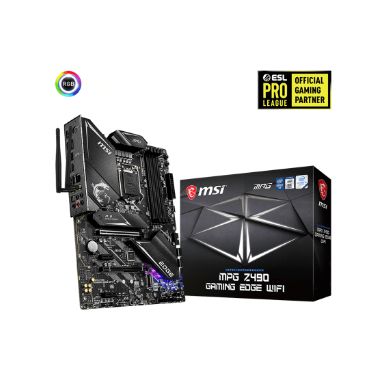

MSI MPG Z490 GAMING EDGE WIFI 'ATX, LGA1200, DDR4, LAN, 802.11ax WiFi 6 + Bluetooth 5.1, USB 3.2, Li

Number of M.2 (M) slots

2

Total number of SATA connectors

6

Front panel connector

Yes

12V power connector

Yes

Supported storage drive interfaces

M.2- SATA

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

Power fan connector

Yes

Peripheral (Molex) power connectors (4-pin)

1

Number of SATA III connectors

6

Number of chassis fan connectors

6

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

Chassis intrusion connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Number of displays supported

2

Motherboard chipset family

Intel

Motherboard chipset

Intel Z490

Parallel processing technology support

2-Way SLI- 3-Way CrossFireX

Cooling type

Passive

Motherboard form factor

ATX

Component for

PC

Total number of SATA connectors

6

Number of mounting holes

9

Audio output channels

7.1 channels

Number of HDDs supported

6

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10

Motherboard chipset family

Intel

Motherboard chipset

Intel Z490

RAID levels

0- 1- 5- 10

Cooling type

Passive

Certification

CE

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Processor manufacturer

Intel

Compatible processor series

Intel® Core™ i9

Maximum number of SMP processors

1

Processor socket

LGA 1200

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Non-ECC

Yes

Supported memory clock speeds

2133-2400-2666-2933-3000-3200-3300-3333-3400-3466-3600-3733-3866-4000-4133-4200-4266-4300-4400-4800 MHz

Maximum internal memory

128 GB

Unbuffered memory

Yes

Number of HDDs supported

6

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2- SATA

RAID levels

0- 1- 5- 10

Number of displays supported

2

Parallel processing technology support

2-Way SLI- 3-Way CrossFireX

Maximum resolution

4096 x 2304 pixels

DirectX version

12.0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB connector type

USB Type-A- USB Type-C

USB 2.0 ports quantity

2

WiFi-AP antenna jack

2

Thunderbolt ports quantity

1

S/PDIF out port

Yes

PS/2 ports quantity

1

Microphone in

Yes

Headphone outputs

1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DisplayPorts quantity

1

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac)- Wi-Fi 6 (802.11ax)

Wake-on-LAN ready

Yes

LAN controller

Intel® I219-V- Realtek RTL8125-CG

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.1

Power source type

ATX

Number of mounting holes

9

Windows operating systems supported

Windows 10

Motherboard chipset family

Intel

Motherboard chipset

Intel Z490

Cooling type

Passive

Certification

CE

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Audio chip

Realtek ALC1200

Harmonized System (HS) code

84733020

Number of M.2 (M) slots

2

PCI Express x16 (Gen 3.x) slots

2

PCI Express x1 slots

2

Power source type

ATX

Maximum resolution

4096 x 2304 pixels

DirectX version

12.0

Certification

CE

Windows operating systems supported

Windows 10

Drivers included

Yes

Drivers included

Yes

Cables included

SATA
